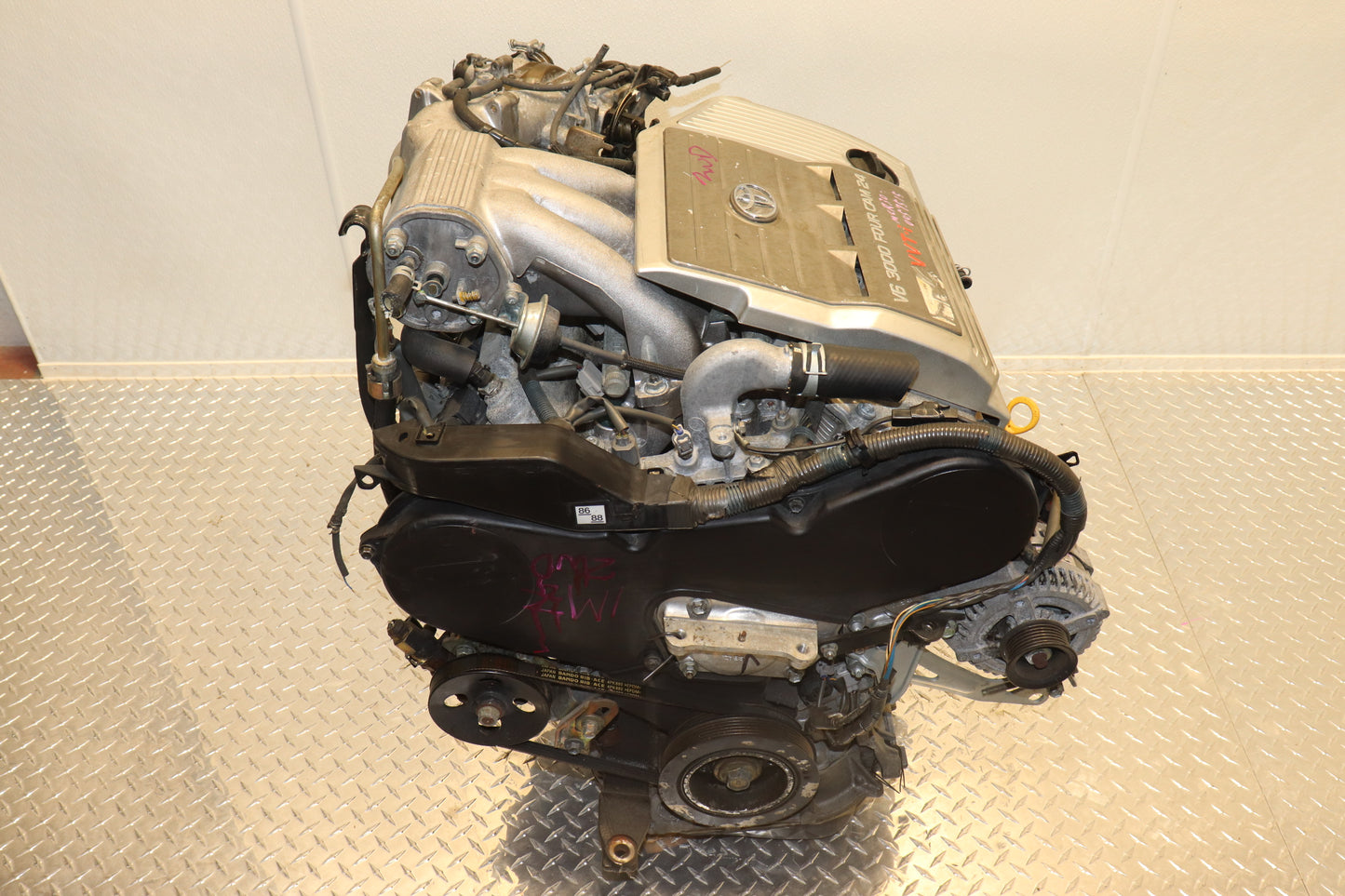

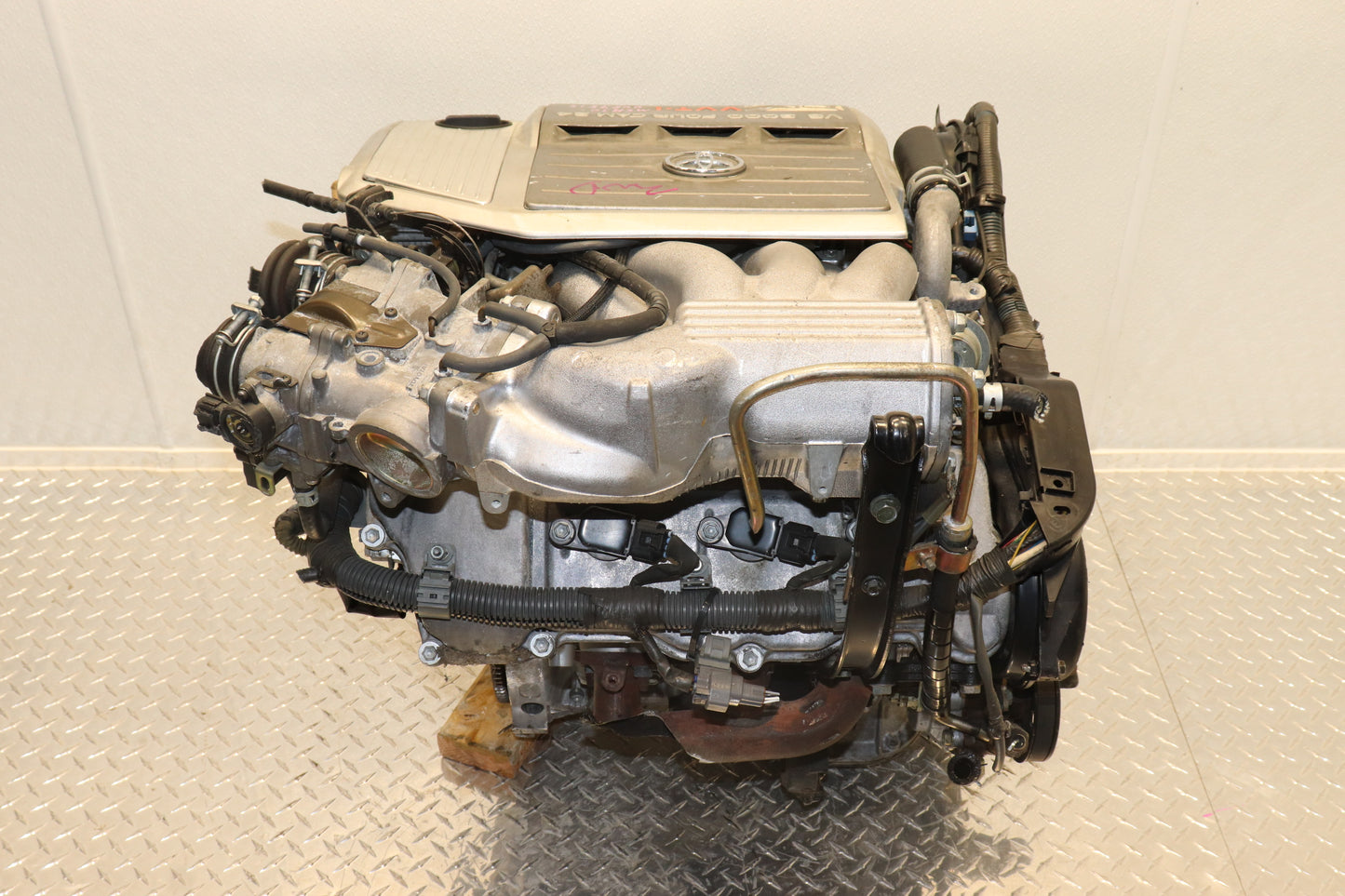

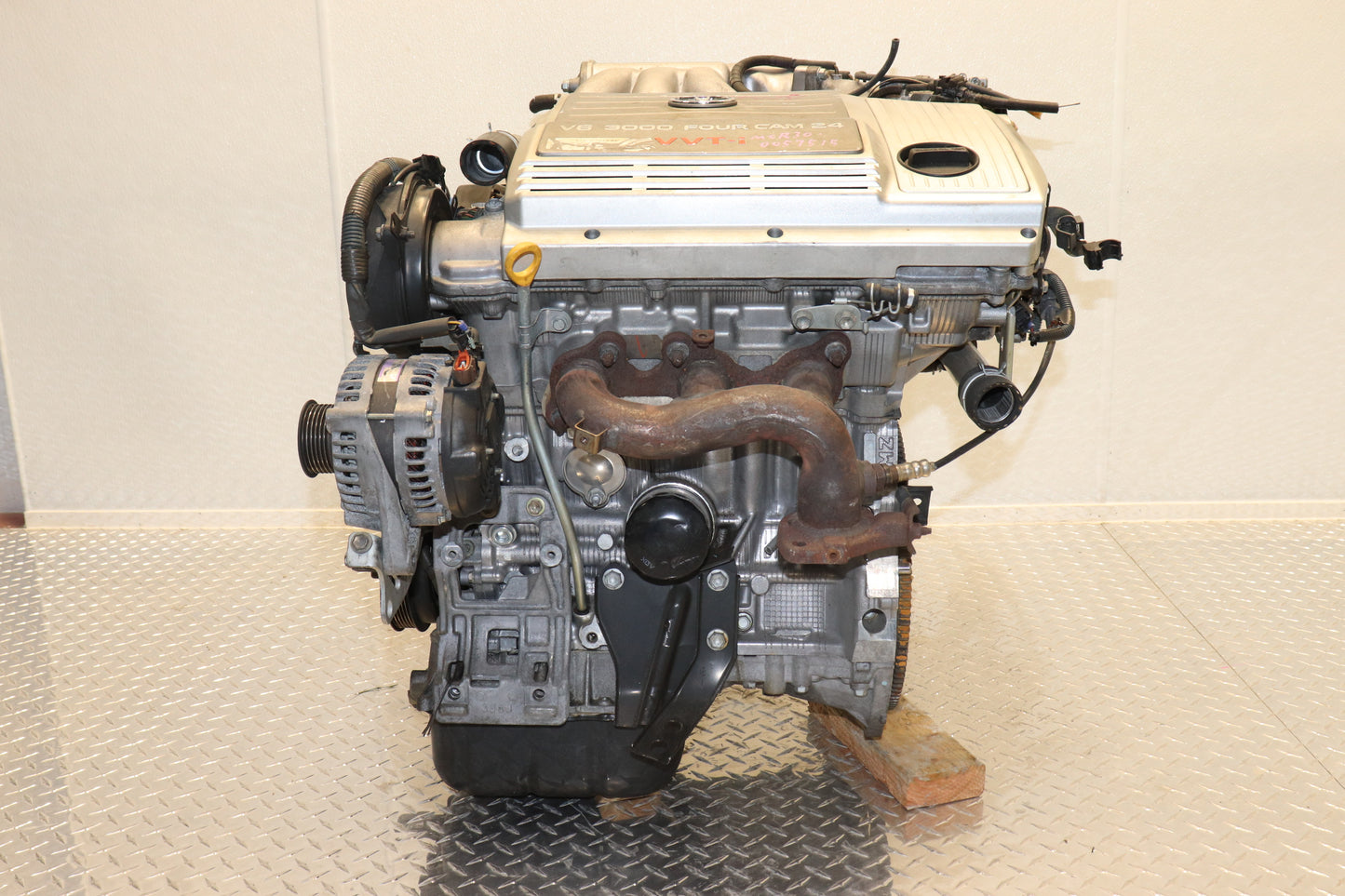

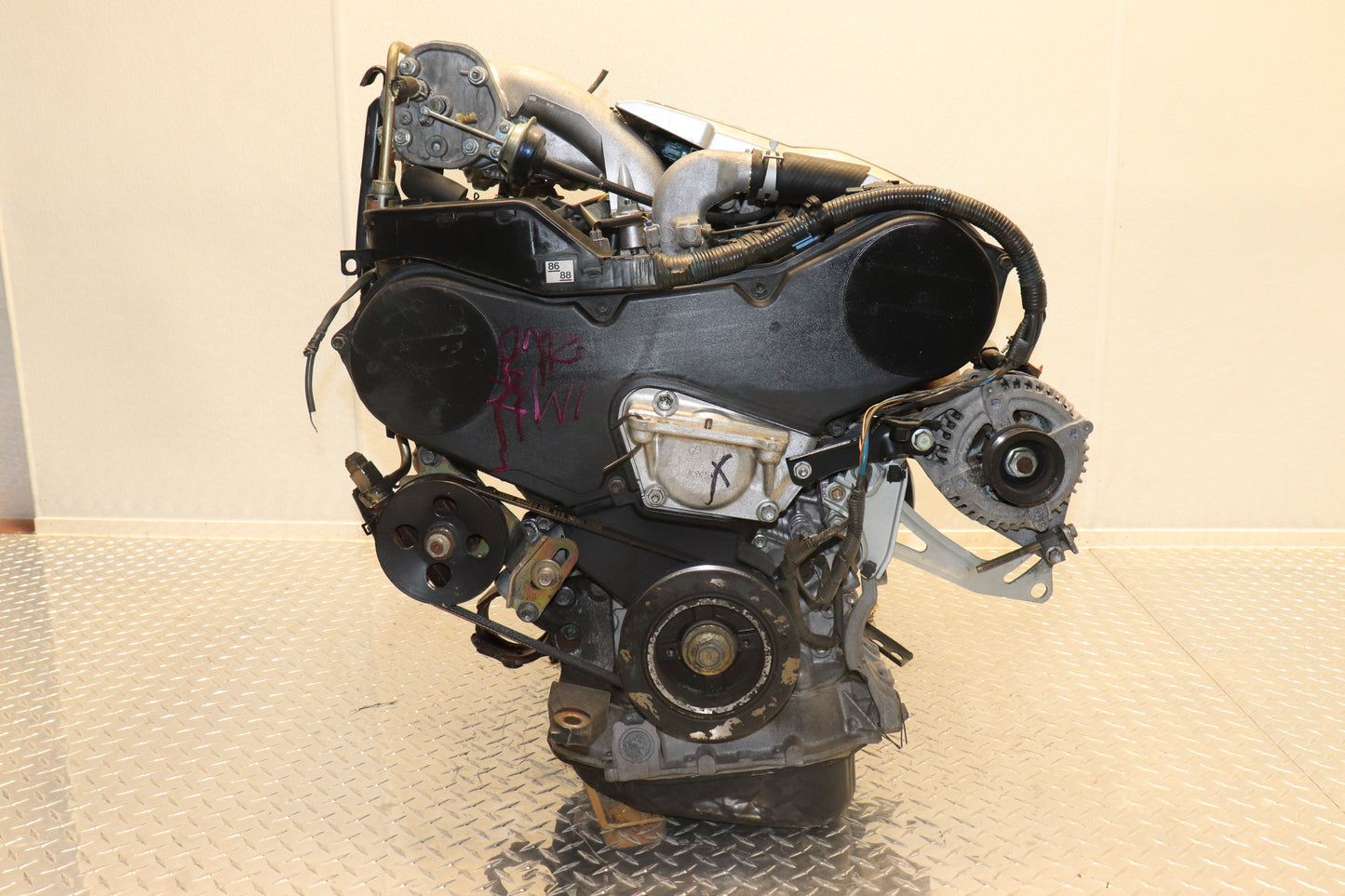

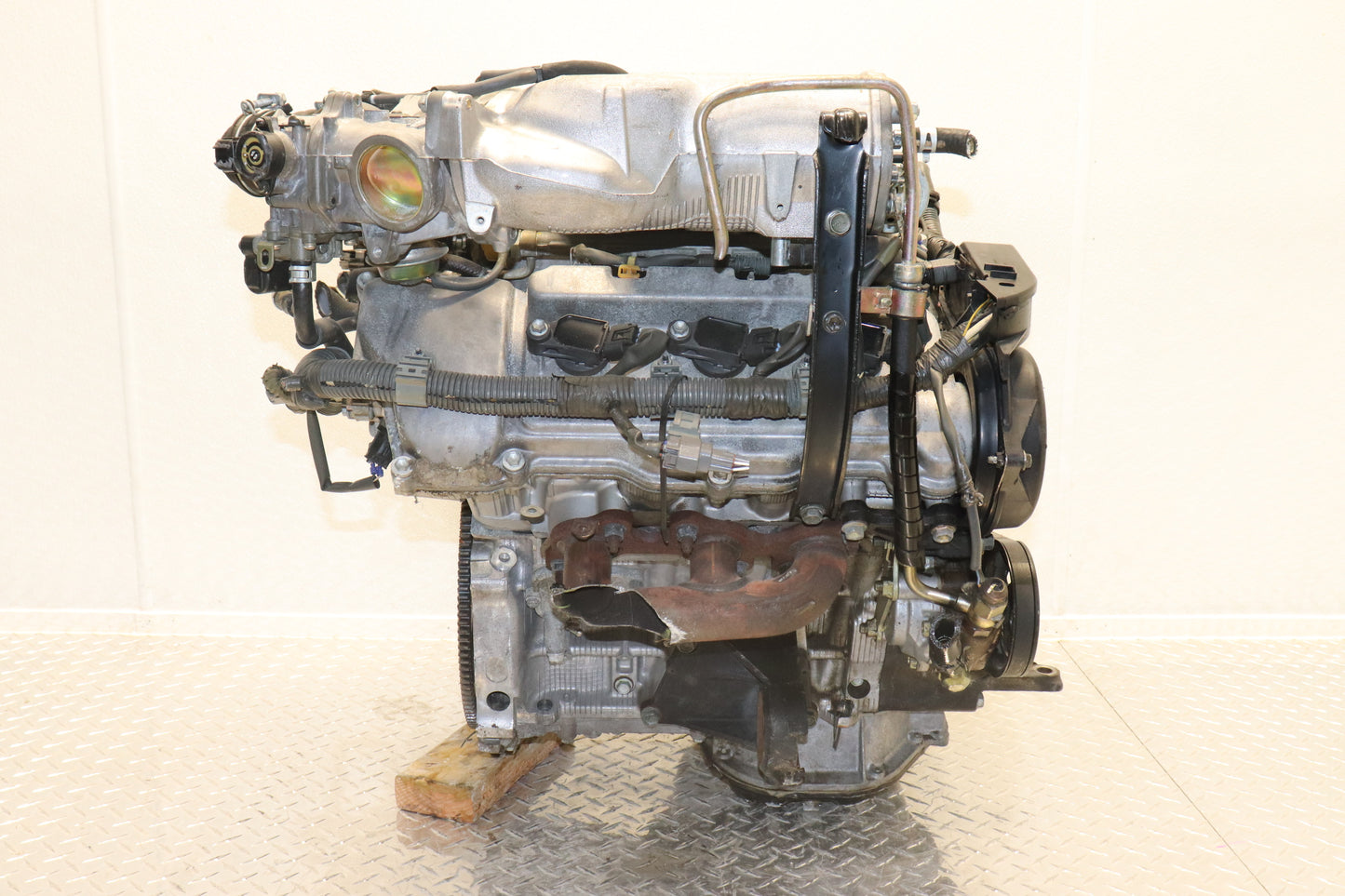

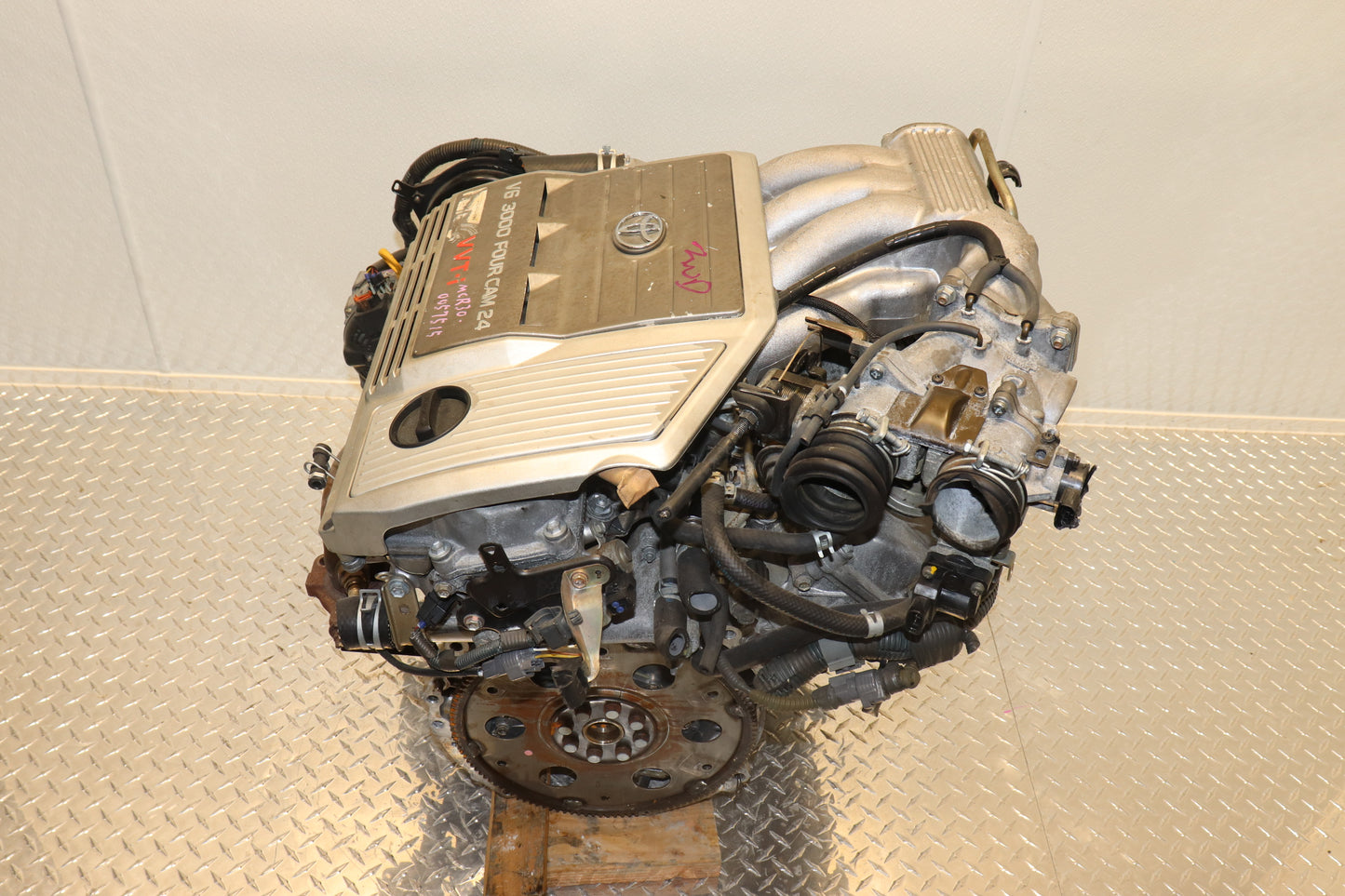

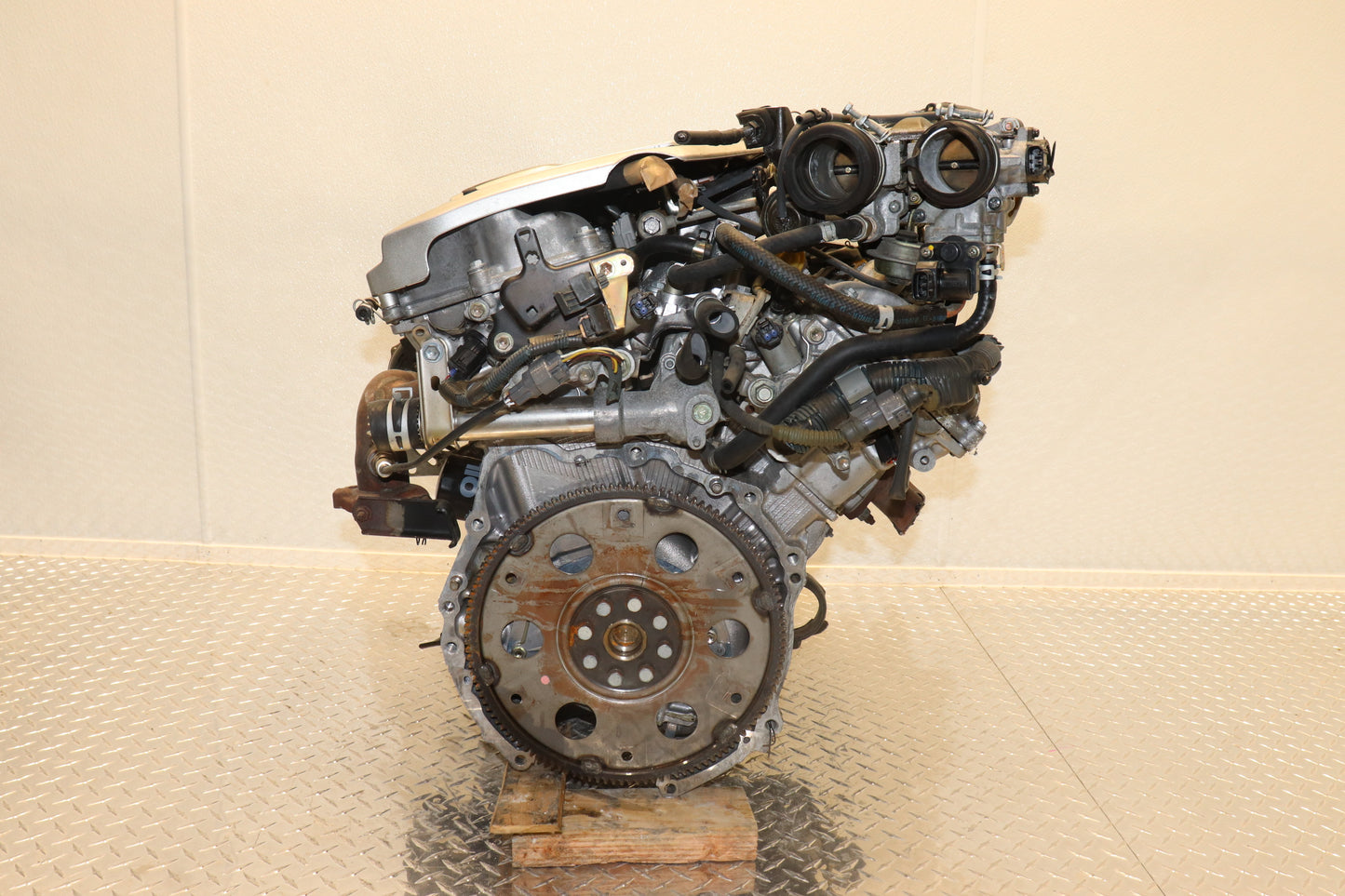

2001-2003 Toyota Highlander 2WD 3.0L V6 VVTi JDM Engine 1MZ-FE | Replacement Motor
-
Product Fitment:(2001 - 2003) Toyota Highlander
-
Mileage:48K
-
Engine Design:V6
-
Engine Type:Gas
-
Warranty:90
-
Available In Stock:1 Items
Shop Now, Pay Later with Shop Pay
Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.
Free Local Delivery
Enjoy fast and free delivery within our local area, ensuring your parts arrive quickly, safely, and hassle-free.
90 Days Warranty
90-day warranty for non-performance engines, 30 days for performance. Covers internal parts, excludes labor. Read more
Product Information
2001-2003 Toyota Highlander 2WD 3.0L V6 VVTi JDM Engine 1MZ-FE | Replacement Motor
Vehicle Specifications
• Engine Code: 1MZ-FE (VVTi Version)
• Displacement: 3.0 Liter (2,995cc)
• Configuration: 60-Degree V6
• Valvetrain: DOHC 24-Valve with VVTi (Variable Valve Timing with intelligence)
• Block Material: Aluminum Alloy
Vehicle Fitments
• 2001-2003 Toyota Highlander (3.0L V6 2WD Models)
• Note: This engine is a direct replacement for the VVTi equipped 1MZ-FE. If your vehicle is AWD, you may need to retain and use your original oil pan and pickup tube.
Included Parts
• Complete Engine Long Block (Cylinder Head & Engine Block)
• Intake Manifold & Throttle Body
• Fuel Rail & Injectors
• Coil Packs, Spark Plugs & Sensors
Installation & Notes
• USDM Swap: To ensure 100% emissions and ECU compatibility, you must transfer all your original USDM accessories from your original engine to this JDM block but keep the JDM Power Steering Pump.
• VVTi Solenoid: Inspect the JDM VVTi solenoids; it is often best to use your original working units if the plugs differ.
• Preventative Maintenance: We strongly suggest installing a new timing belt kit, water pump, thermostat, and spark plugs while the engine is out of the vehicle.
• Oil: Use high-quality 5W-30 motor oil as specified by Toyota.
• Warranty: Includes a 90-day startup warranty on internal moving parts (Head & Block).
